ANTOP AT-601B Smartpass Amplifier Kit (Black)

$28.99 $19.99

ANTOP Smartpass Amplifier with High Gain, Built-in Low Noise 4G LTE Filter & Power Supply Kit (Black) AT-601B

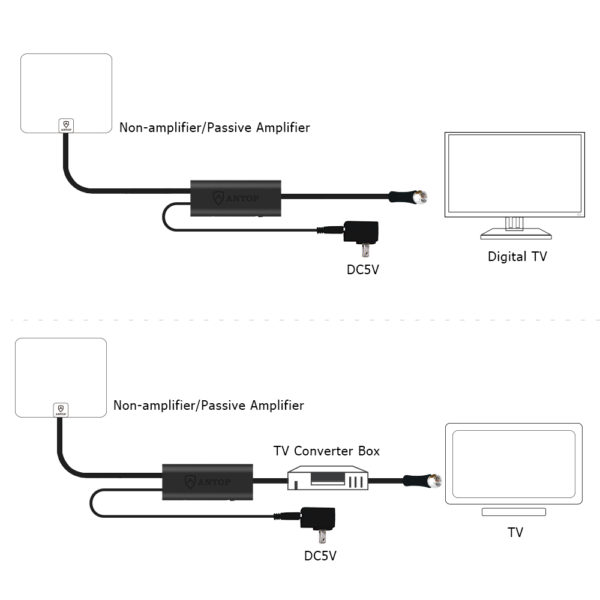

The ANTOP Smartpass Amplifier, AT-601B,is designed to work with any non-amplified/bypass antenna to boost the over-the-air TV signal received by the antenna. The attached 3ft and 0.3ft extension coaxial cables at either end offer connection flexibility and enable you to move the antenna within a wider placement range for better reception. The AT-601B supports over-the-air TV signals including HDTV, 1080P TV and 4K ULTRA HD.

97 in stock (can be backordered)

SKU: AT-601B

Product Benefits/Bullet Points

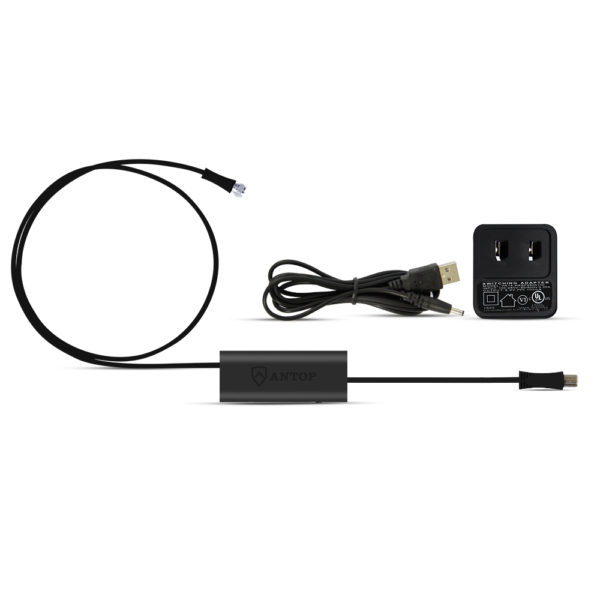

  • Works with any non-amplified/passive TV antenna. High gain is designed to amplify VHF and UHF SIGNALS with a LOW NOISE level, less than 2dB. Dual-color indicator, Green for long reception and Yellow for short reception. 3ft and 0.3ft EXTENSION COAXIAL CABLES are attached at either end for easy connection. AT-601B(Black) must be powered to function. Unit can be powered via the included USB cable by connecting to any USB power adapter supporting 5V output on USB-port.

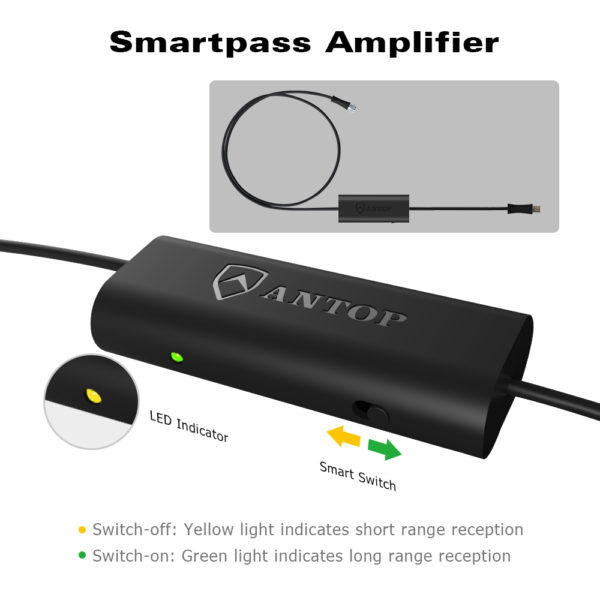

  • Engineered and designed in the USA by ANTOP, the antenna specialists, the ANTOP SMARTPASS AMPLIFIER features a SMART SWITCH to balance the amplification between short and long range signals received by the antenna. The Smart Switch is recommended to be switched ON to boost weaker signal level reception, and switched OFF to avoid amplification overload for stronger signal reception. The SMARTPASS AMPLIFIER is not recommended for use with an amplified antenna.
  • The SMARTPASS AMPLIFIER, an exclusive technology offered only by ANTOP, uses an all-in-one design to allow an easier connection between a non-amplified/passive antenna and your TV delivering the correct balance between short and long range reception. ANTOP was the first antenna manufacturer to include a BUILT-IN 4G FILTER in all their amplified products to BLOCK 3G and 4G wireless signals to ensure NOISE-FREE digital TV reception.
  • Tips: When using an AT-601B SMARTPASS AMPLIFIER with any non-amplified antenna, note that antenna effectiveness is also influenced by its distance from the signal origination point, station signal strength level, building construction, antenna positioning, reflections from nearby structures and any power consumption sources. The amount of free over-the-air channels you can receive will vary by area and atenna selection, check signal availability at Signal maps

Specification

Brand

ANTOP

Usage

Indoor

Frequency Range

87.5-700MHZ

Gain

16dB

Max Output level

105dBuV

Noise figure

≤2dB

Return Loss

>8dB (5-1000MHz)

Power Supply

DC5V via USB

Cable Length

5ft

Color

Black

Product Series

Smartpass Amplifier

Packing

Weight

0.33 lbs

Dimensions

2.56 × 2.16 × 5.12 in
