With the ANTOP AT-414BC5, there is no monthly fee and no need to subscribe. Just plug into a TV, scan the channels, and then enjoy your TV shows!

• Cut the Cable – Enjoy watching FREE local over-the-air high definition TV broadcasts from available networks in your area such as, ABC, CBS, NBC, PBS, Fox, Univision and others with the ANTOP AT-414BC5 Smartpass Amplified HDTV Antenna. The AT-414BC5 is powerful enough to support multiple TVs. No monthly fee or subscription required.

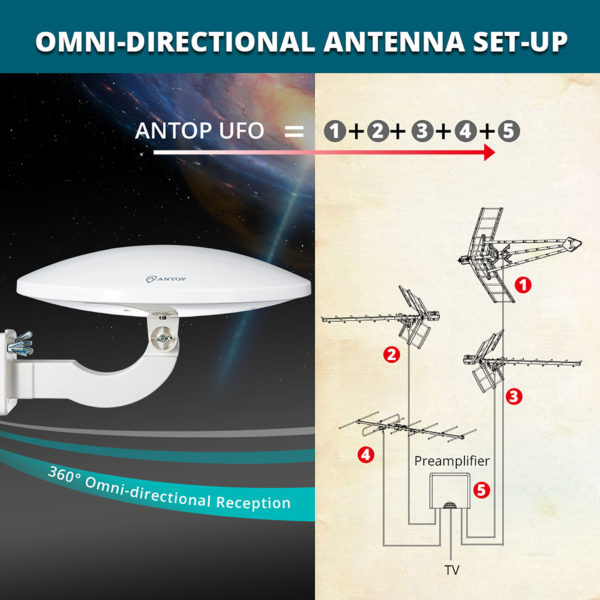

• Engineered and designed in USA by ANTOP, the antenna specialists, the AT-414BC5 UFO OTA digital TV antenna features 55 to 65-MILE reception long range from point of signal origination with 360 DEGREE Omni-directional technological characteristics providing excellent non-adjustment reception from various signal origination locations. A built-in 4G FILTER blocks 3G and 4G wireless signals to ensure noise-free digital TV reception.

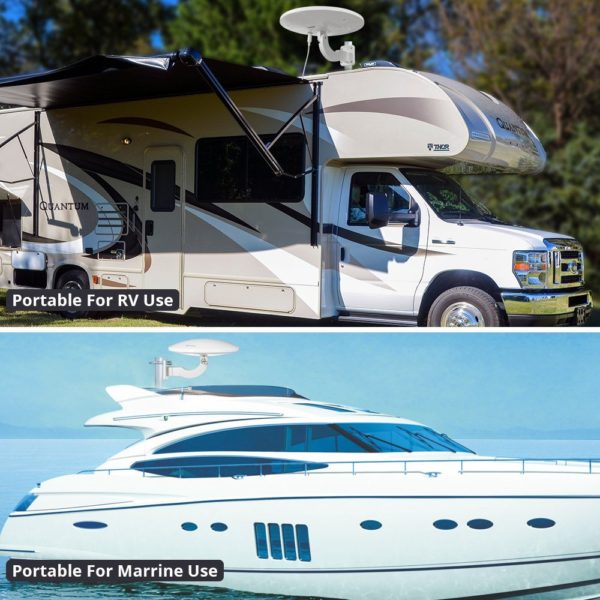

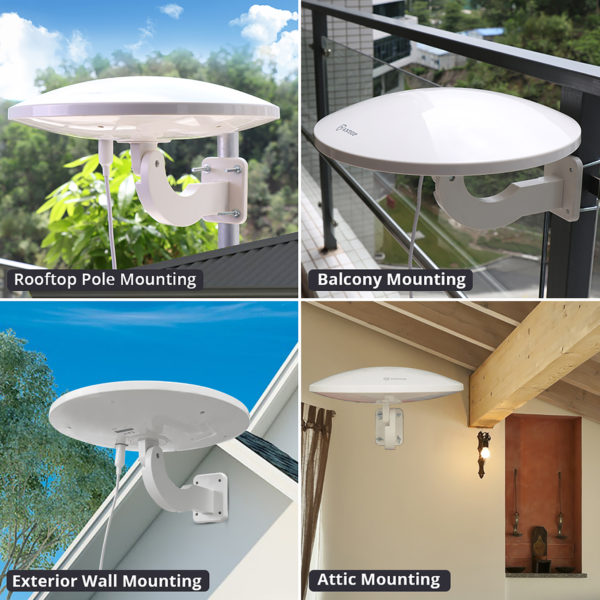

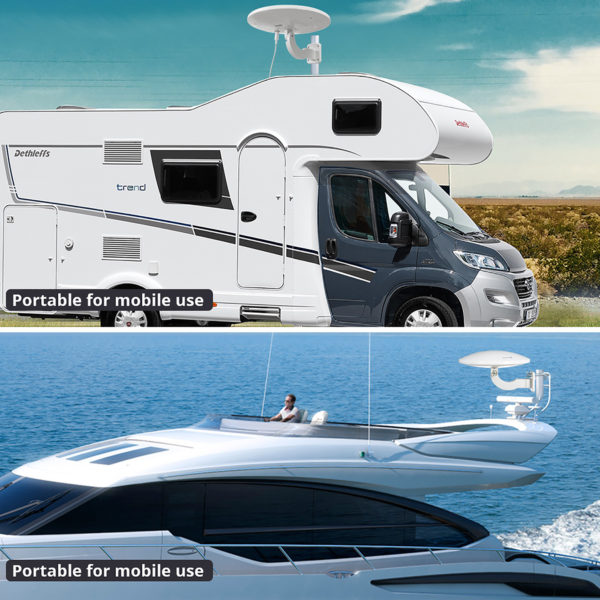

• Its UV coating, weather resistant finish and compact design make the AT-414BC5 perfect for easy home exterior installation: wall, roof, balcony. In addition to a home TV antenna, the Omni-directional signal reception makes the UFOs perfect for mobile homes usage as an RV TV antenna.

New Generation digital tech design

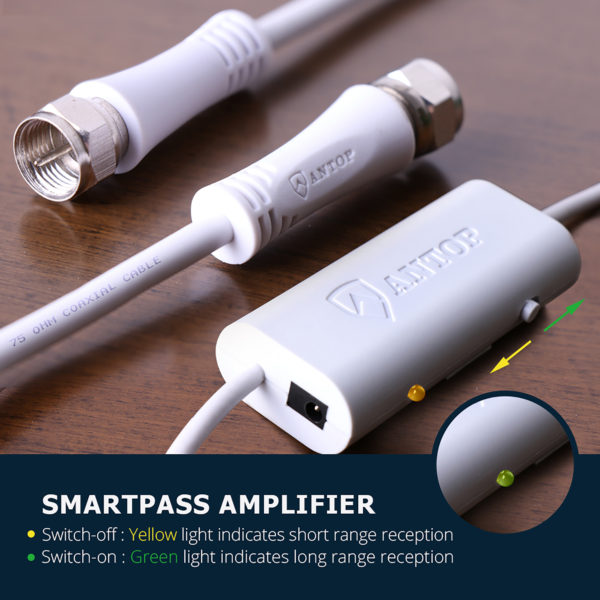

• Smartpass Amplifier, exclusive ANTOP technology, uses an all-in-one design allowing easier connection while delivering the correct balance between short and long range reception.
• 4G LTE Filter: built into all ANTOP amplified TV antennas, blocks 3G and 4G wireless signals for noise-free digital reception.
• High Gain reception technology, shielded for minimum interference.
• Durable exterior, waterproof design with UV coating.
• Supports VHF&UHF digital signals.
• Mounting accessory options.

Antenna Technical Information

Range: 55 to 65 miles from point of signal origination

Power Supply: DC 12V

Reception Pattern: Omnidirectional

Polarization: Horizontal

Color: Piano White

Size: Ø15.00in

Exclusive Technology: Smartpass Amplifier, Built in 4G LTE Filter

Smart Switch On: Long range reception

Smart Switch Off: Short range reception

Frequency Range: 87.5-230MHz, 470-700MHz

Receiving Range: VHF/UHF

Gain: 12dB or 22dB

Max Output level: 100dBuV

Impedance: 75Ω

Noise figure:≤3dB

 Splitter

Screening factor:5-300MHz≥75dB,300-470MHz≥75dB, 470-1000MHz≥65dB,1000-2050MHz≥55dB

Insertion Loss: 4dB(5-47MHz), 4.5dB (47-1000MHz),5dB (1000-1750MHz),6dB (1750-2050MHz)

Isolation: 20dB (5-47MHz), 22dB (47-2050MHz)

Return Loss: 12dB (5-2050MHz)

Receiving Range: TV/SAT.

All Port DC Pass: 24V/200mA (max.)

What’s in the box

AT-414BC5 UFO Smartpass Amplified Digital Outdoor/RV HDTV Antenna

AC/DC Power Adapter

Power Inserter with Smart Switch

2-Way RF Splitter

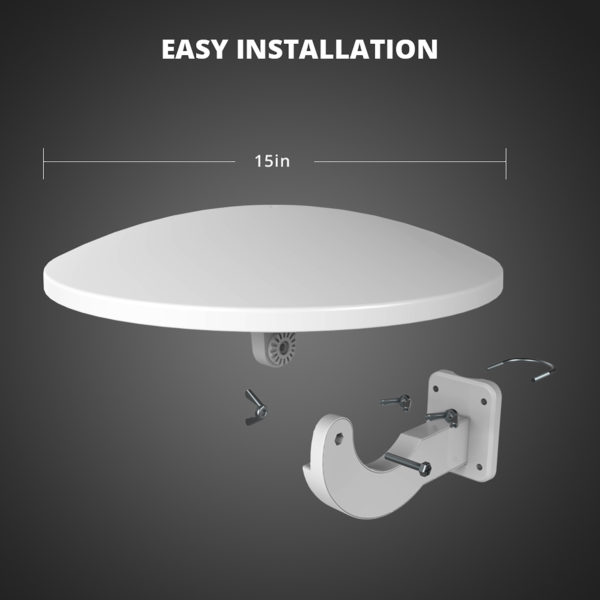

Outdoor Bracket

Mast Clamp Kits

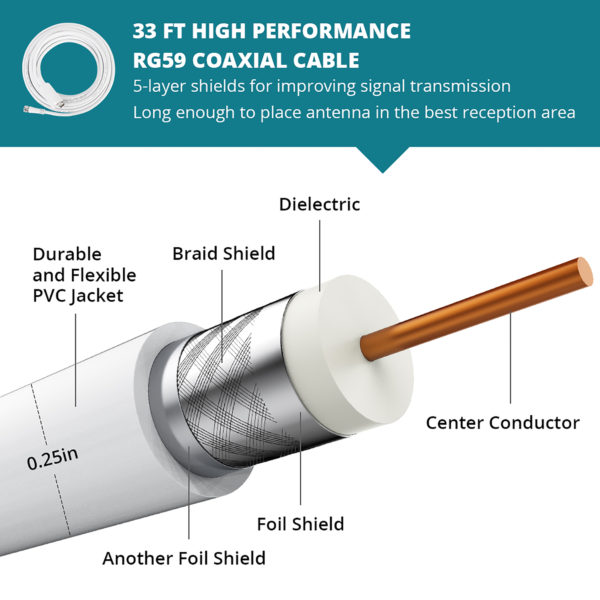

33’ Coaxial Cable(1 pcs)

Instruction/User Manual

Instrucciones de Instalación en Español

The number of TV channels and programs that you can receive for FREE depends on the amount of over-the-air broadcasters in your area.

Simple tips to ensure HDTV FREE TV：

– Re-scan the channels after each switching of the Smart Switch.

– Scan channel monthly to find all available channels including newly added or changed.

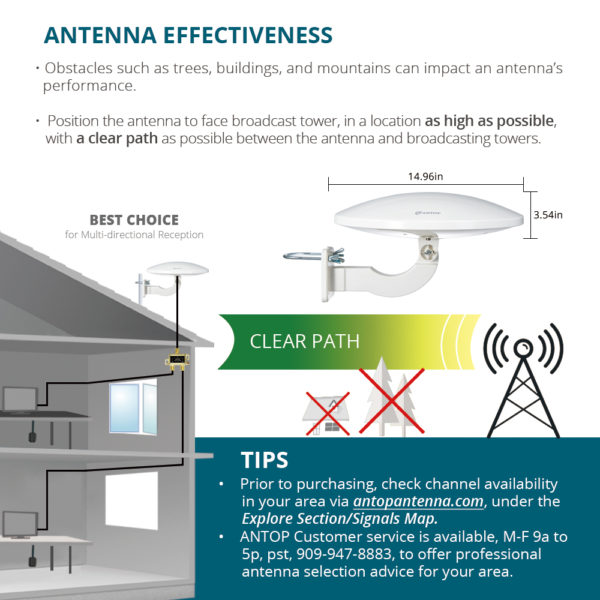

– Do not put or hide the antenna in/behind any metallic objects.

– Install the antenna as high as possible and near the window for better reception.

– Keep the antenna away from any high power consumption devices to avoid interference, such as air-condition, power station, elevator etc.
