ANTOP CURVED PANEL AT-212FM 50 miles Indoor Amplified AM/FM Antenna

$64.99 $39.99

• Stylish and compact design
• Receives AM/FM Radio Signals

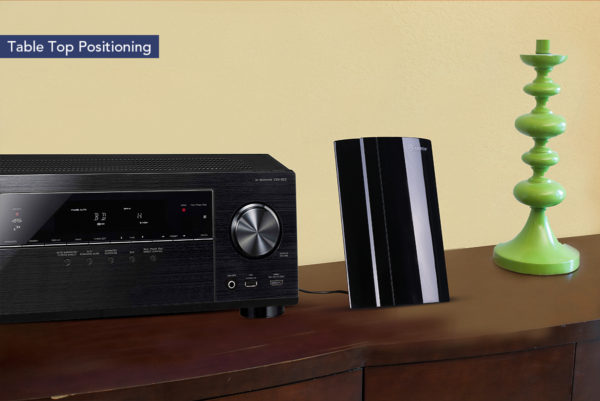

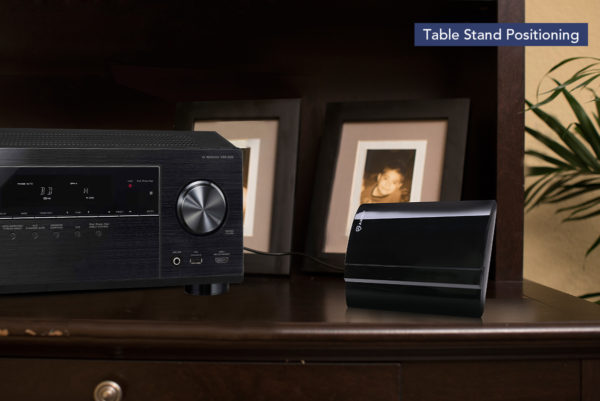

• Horizontal or vertically positioning options
• Boosts weak FM signals and reduces feedback

100 in stock (can be backordered)

SKU: AT-212FM

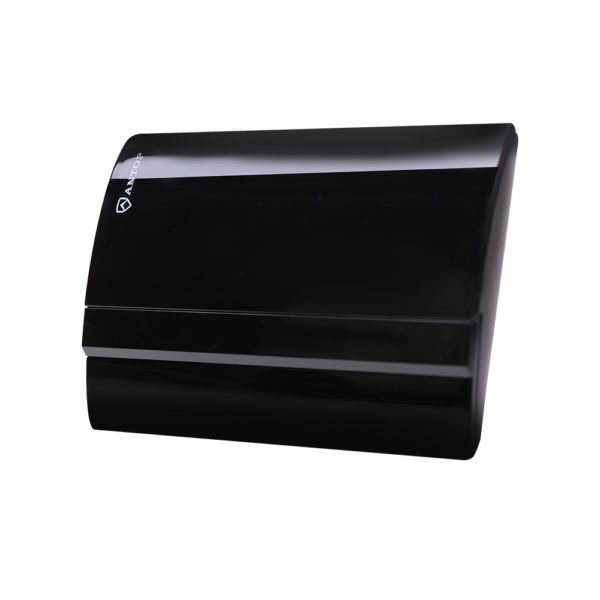

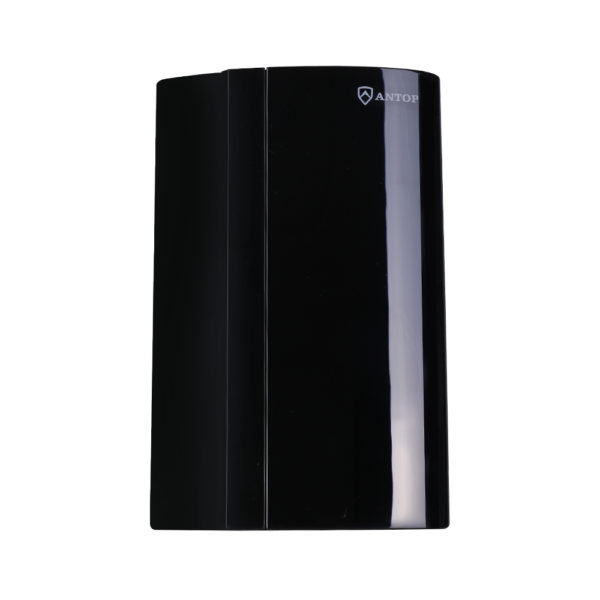

    ANTOP AT-212FM is a CURVED PANEL Indoor Amplified AM/FM Antenna.

    The CURVED PANEL AT-212FM Indoor Amplified AM/FM Antenna is designed to bring beautiful design, new digital tech and clear AM/FM reception to your home. With low-noise amplifier built in, it boosts the FM signal and delivers superb AM/FM reception, assuring you more channel reception and fewer blind spots. Its stylish and sleek curved panel design is aesthetically pleasing and suitable to match a wide range of home interior styles. The simple set-up design enables you to quickly install and easily connect within seconds. Its vertical or horizontal positioning options allow you to position the antenna anywhere in your home.

    Just plug into your home stereo or A/V receive and you can listen to your favorite radio stations.

    The AT-212FM Indoor Amplified AM/FM Antenna is designed for simple set-up with AM/FM receivers, receiving the most music, news, sports and talk radio available in your area.

    Engineered and designed by ANTOP, the antenna specialists, the CURVED PANEL AT-212FM combines style and the latest digital technology to create a new radio listening experience.

    A low-noise Amplifier is built in to improve FM signal reception and increases clarity.

    Antenna Technical Information
    Range: 50 miles from point of signal origination
    Frequency Range: AM: 520-1650K, FM: 87-108M
    Receiving Range: AM/FM
    Antenna Gain: AM: 2dB, FM: 20dB
    Max Output Level: 100dBuV max
    Impedance: 75Ω
    Noise: ≤5dB
    Power Supply: DC 6V
    Polarization: Horizontal/Vertical
    Color: Black
    Size: 7.46 x 4.67 x 1.18 in
    Coaxial Cable: 6ft

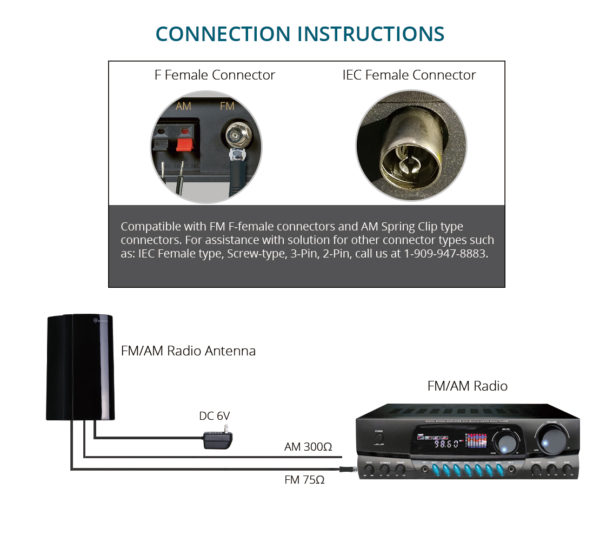

    Prior to purchasing this antenna, check the connector types of your AM/FM radio. This antenna is equipped to match a “F” Female connector.

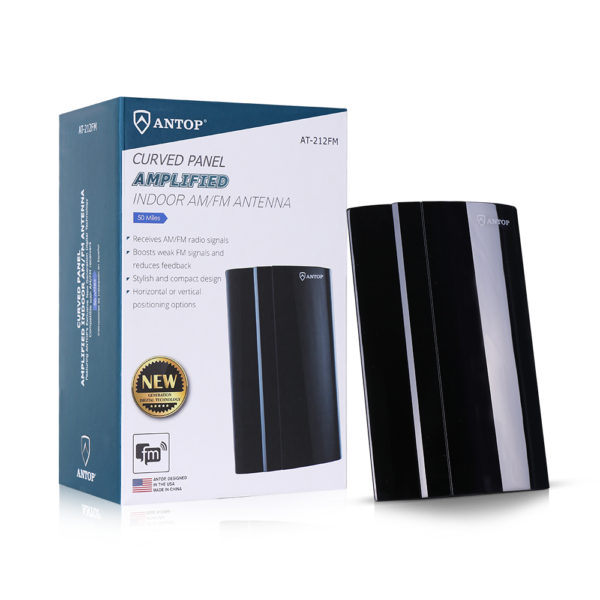

    What’s in the box
    AT-212FM Amplified Indoor AM/FM Antenna
    AC/DC Power Adapter
    6ft Coaxial Cable
    Detachable Stand
    Instruction/User Manual
    Instrucciones de Instalación en Español

    NOTE:
    Antenna effectiveness is influenced by the distance from signal origination point, station signal strength, antenna positioning, reflections from nearby structures and any power consumption sources. The amount and quality of the stations you will receive depends on broadcast towers location, signals being broadcast, and the strength of the broadcast signals in your area.

    By following the simple tips below, you can enjoy your favorite radio stations:
    – Do not place or hide the antenna in/behind any metallic objects.
    – Install the antenna as high as possible and near a window for better reception.
    – Keep the antenna away from any high power consumption devices to avoid interference.

    Specification

    Usage

    Indoor

    Signal Strength

    Moderate Signal Areas

    Reception Pattern

    Multi-directiona

    Gain

    AM:2dB,FM:20dB

    Max Output level

    100dBuV

    Noise figure

    ≤5dB

    Impedance

    75Ω

    Power Supply

    DC5V via power adapter

    Cable Length

    6ft

    Color

    Black

    Product Series

    Curved Panel

    Packing

    Weight

    1.09 lbs

    Dimensions

    7.68 × 4.92 × 3.35 in
