Description
ANTV Digital Outdoor/Attic HDTV Antenna with enhanced VHF reception, model No. ANTV2003. Compact size with a matte black finish is suitable to match a wide range of home décor styles.

Reception Tips
– Test the antenna in multiple locations before mounting to determine the best reception location.
– Place the antenna in a clear path between transmitter and reception location.
– Any surrounding obstacles will cause signal reflecting and weakening.
– Run a channel scan every time you reposition the antenna.
– Re-scan channels monthly to find all available channels including newly added or changed.
– Install the antenna in a location that is as high as possible for better reception.
– Keep the antenna away from any high-power consumption devices to avoid interference.

Technical Specification
Range: 65 miles from point of signal origination
Frequency Range: 87.5-230MHz, 470-862MHz
Receiving Range: VHF/UHF
Reception Pattern: Multi-directional
Color: Black
Gain: 8-10dB Max
Impedance: 75Ω
Cable Length: 33ft
Size: 18 × 12.5 × 1.76 in

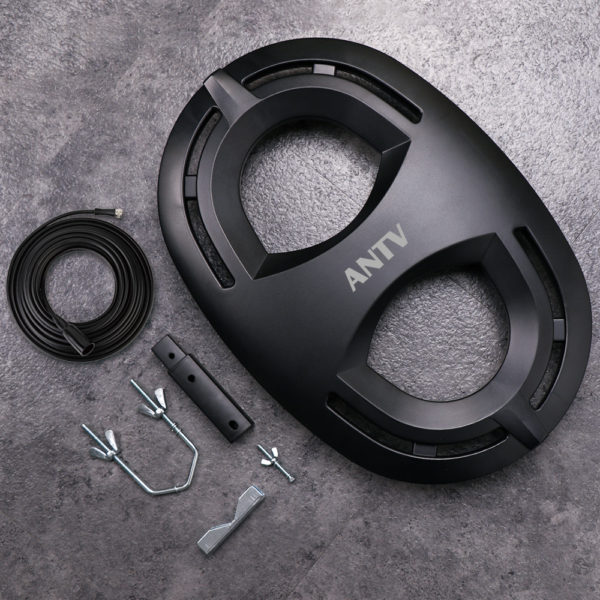

Before you start your installation, please check the contents.
1) Antenna
2) Mast Clamp Supporter
3) Mast Clamp Kit
4) 33ft Coaxial Cable
5) Manual
6) 22 in J-Pole
