Description
The ANTOP AT-500SBS Black HD SMART BAR Amplified HDTV＆FM Antenna puts free over-the-air HDTV viewing within your reach. Receive popular channels like ABC, CBS, NBC, PBS, Fox, Univision and others from up to 80 miles away. Its Smart Boost System delivers the correct balance between short-, mid- and long-range signals to give you plenty of viewing options.

Features
1) Watch free local TV channels
– Watch your favorite local news, sports and TV shows for free
– Receives free local, over-the-air digital TV signals from networks like ABC, CBS, NBC, PBS, FOX, Univision and others
– Reduce the cost of your cable bill or replace cable boxes in your extra rooms
– No monthly fee and no need to subscribe
– Simply plug into your TV, scan channels, then enjoy the TV shows
2) Smart Boost System with built-in adjustment dial
– Allows for an easier connection and delivers the correct balance between short-, mid- and long-range reception for connected devices
– Lets you increase or decrease amplifier strength based on your location’s specific needs
– Adjusts the antenna’s reception power with just a turn of the dial
– Simply turn the dial clockwise to increase gain or turn it counter-clockwise to reduce gain
– Offers exclusive ANTOP technology
3) New Generation digital technology
– Provides high-gain reception to ensure the reception of more channels and diminish blind spots
– High-gain reception technology is shielded for minimum interference
– Supports HD, 1080p and 4K Ultra HD TVs
– Also compatible with converter boxes
4) Multi-directional functionality with amplified 80-mile range
– Amplifies range from the broadcast origination source from 0 to 80 miles
– Supports VHF and UHF digital signals
5) Built-in 4G LTE filter
– Blocks unwanted 3G and 4G wireless signals to ensure noise-free digital TV reception
– Helps reduce picture pixelation

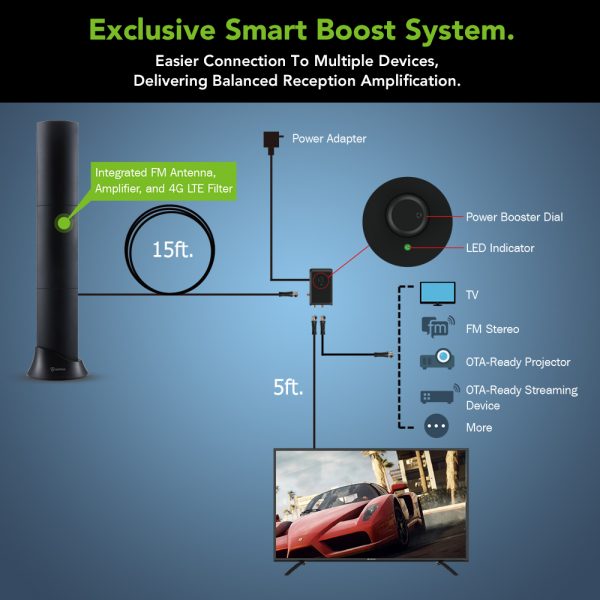

6) Dual connectivity
– Use the secondary output on the Smart Boost System to connect to a second device (a second TV, FM stereo or any OTA-ready streaming device or projector) simultaneously
– Makes a great complement to a media streamer
– 15′ and 5′ coaxial cables are included to connect your 2 devices to the Smart Boost System
7) Integrated FM antenna
– Allows you to listen to your favorite radio stations
– Features a multi-directional reception pattern with ample signal range to receive local broadcasts
– Connect the antenna to a radio/ stereo receiver or tuner to enjoy local AM and FM radio broadcasts
– Includes connectors that are compatible with most radio receivers and tuners

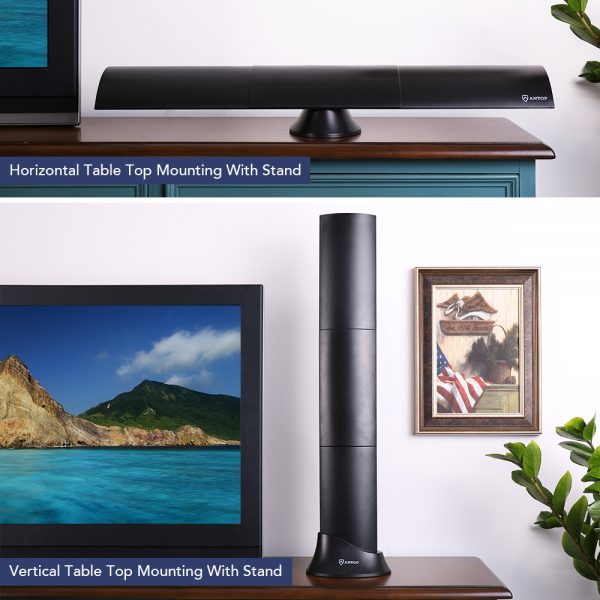

8) Creative 3-in-1 bar design
– Allows you to set it up in a vertical or horizontal position or mount it to your wall
– Matches a wide range of home interior styles
– Compact, sleek design
– Aesthetically pleasing sculpture-like design
– Included table stand makes for easy tabletop setup
9) Easy, plug and play setup
– Lets you install it in any one of a variety of locations around your home to best suit your signal
– Test the antenna in multiple locations and adjust it horizontally or vertically to find the best spot for reception before fixing it
– A high location or positioning the antenna in the direction of the broadcast tower may result in better reception
10) Portable
– Great for taking tailgating to watch the big game or for use in an RV while camping with a power source

Good to Know
– The number of TV channels and programs that you can receive for free depends on the amount of over-the-air broadcasters in your area.
– Scan channels monthly via the digital tuner in your TV menu. If you don’t have a TV with a digital tuner, please connect a digital converter box.
– Re-scan the channels after turning the Smart Boost dial for the best channel reception.
– Individual results may vary depending on location and region.
– Do not place or hide the antenna in/behind any metallic objects.
– Install the antenna as high as possible and near a window for better reception.
– Keep the antenna away from any high-power consumption devices to avoid interference.

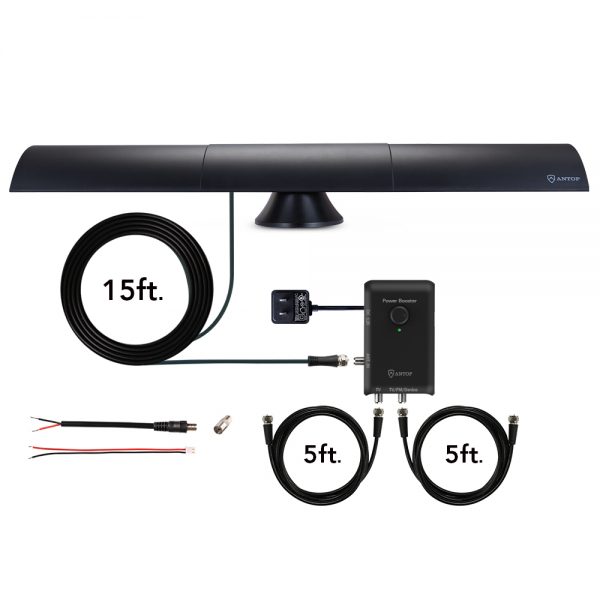

What’s in the box
– ANTOP AT-500SBS HD Smart Bar Amplified Antenna
– Power Booster
– AC/DC Power Adapter
– 15’ Coaxial Cable x 1PCS
– 5’ Coaxial Cable x 2PCS
– AT-731 FM Antenna Adapters
– Indoor Stand
– Wall Mounting Kit
– Instruction/User Manual

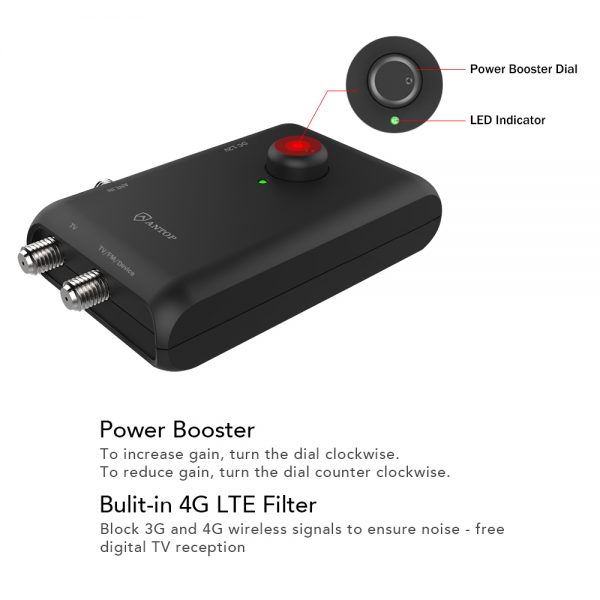

Power Booster On – specs and range
Frequency: 47~700MHz
Insertion loss: 4.8dB
Power in: DC 12V
Power out: DC 11.7V
Impedance: 75Ω
Regulation: 0~15dB

Technical Specification
Range: 0~80 miles
Reception Pattern: multi-directional
Polarization: Horizontal/Vertical
Frequency Range: 87.5-230MHz, 470-700MHz
Receiving Range: VHF/UHF
Gain: 7dB-22dB
Max Output level: 100dBuV Max
Impedance: 75Ω
Noise figure: ≤3dB
Power Supply: DC 12V

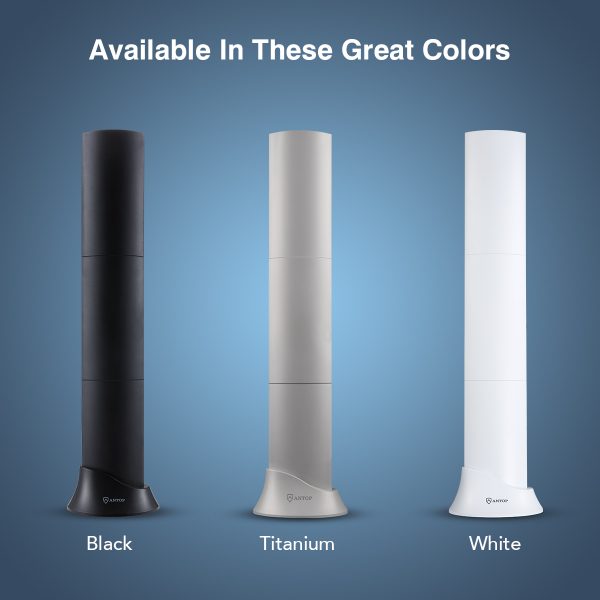

Color: Black, White, Titanium
Size: 4.72×1.57×29.00 in
Coaxial Cable: 15’ and 5’
Exclusive Technology: Power Booster, Built in 4G LTE Filter
