ANTAN Flat Panel ANT-403B 65 to 80 miles Smartpass Amplified Outdoor HDTV Antenna
Rated 5.00 out of 5 based on 10 customer ratings
(10 customer reviews)

$89.99 $59.99

• New Generation digital tech design: matches mechanical antennas
• UV coating, weather resistant finish
• Whole-house solution: Can feed multiple TVs
• Smartpass technology amplifies range up to 80 miles
• 4G LTE Filter: blocks unwanted 3G and 4G signals
• Multi-directional reception for weak signal strength areas
• Easy home exterior installation: desktop, wall, roof, balcony
• Size: 12.20 X 3.89 X 23.82 inch

1 in stock

SKU: ANT-403B
  • Description
  • Product Data

Introduction

The ANTAN Flat-Panel ANT-403B panel design is aesthetically pleasing and suitable to match a wide range of home exterior styles. The Multi-directional reception, UV coating and weather resistant finish and creative panel design, allow you to install your ANT-403B antenna in various locations around the exterior of your home: wall, roof, balcony. It is also suitable for indoor use in an attic or placed on a table top. The ANT-403B supports HDTV, 1080P TV and 4K ULTRA HD and is compatible with TV converter boxes or digital TVs.

The number of TV channels and programs that you can receive for FREE depends on the amount of over-the-air broadcasters in your area. With the ANTAN ANT-403B, there is no monthly fee and no need to subscribe. Just plug into a TV, scan the channels, and then enjoy your TV shows!

ANTAN’s New Generation Digital Technology

1) Smartpass Amplifier, exclusive ANTAN technology, balances reception range.

The Smartpass Amplifier’s all-in-one design allows easier connection, delivers correct balance between short and long range reception. It must be powered in order to function. Push the smart switch On or Off and select the switching with which more channels are received.
2) 4G LTE Filter: built into all ANTAN amplified antennas, blocks 3G and 4G wireless signals for noise-free digital reception.
3) High Gain reception technology, shielded for minimum interference.
4) Durable exterior, waterproof design with UV coating.
5) Supports VHF & UHF digital signals.
6) Mounting accessory options.

By following the simple tips below, you can enjoy FREE TV with your ANTAN Antenna:

– Re-scan the channels after each switching of the Smart Switch.
– Scan channels monthly to find all available channels including newly added or changed.
– Do not place or hide the antenna in/behind any metallic objects.
– Install the antenna as high as possible and near a window for better reception.
– Keep the antenna away from any high power consumption devices to avoid interference.

NOTE: Antenna effectiveness is influenced by the distance from signal origination point, station signal strength level, building construction, antenna positioning, reflections from nearby structures and any power consumption sources. The amount of free over-the-air channels you can receive will vary by area and antenna selection, check signal availability at ANTAN Signalmaps.

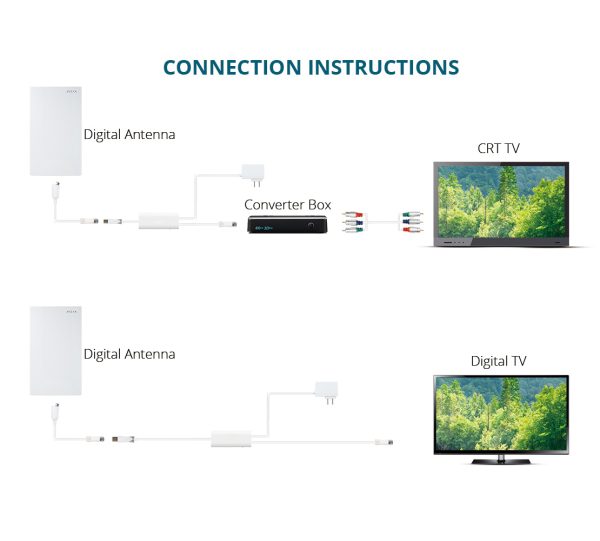

What’s in the box

– ANT-403B FLAT PANEL Smartpass Amplified Digital Outdoor/Indoor TV Antenna
– Power Inserter with Smart Switch
– AC/DC Power Adapter
– Indoor Stand
– 40ft Coaxial Cable
– Wall/Pole Mounting Bracket
– Instruction/User Manual
– Instrucciones de Instalación en Español

Specification

Brand

ANTAN

Usage

Indoor, Outdoor

Signal Strength

Weak Signal Areas

Amplification

Smartpass Amplified

Frequency Range

87.5-230MHz, 470-700MHz

Gain

Switch-OFF: 14dB; Switch-ON: 30dB

Max Output level

100dBuV

Noise figure

≤2.5dB

Impedance

75Ω

Power Supply

DC12V via power adapte

Working Temperature Range

-104 to 140 ℉

Color

White

Product Series

Flat Panel

Packing

Weight

9.26 lbs

Dimensions

12.99 × 5.91 × 21.65 in
